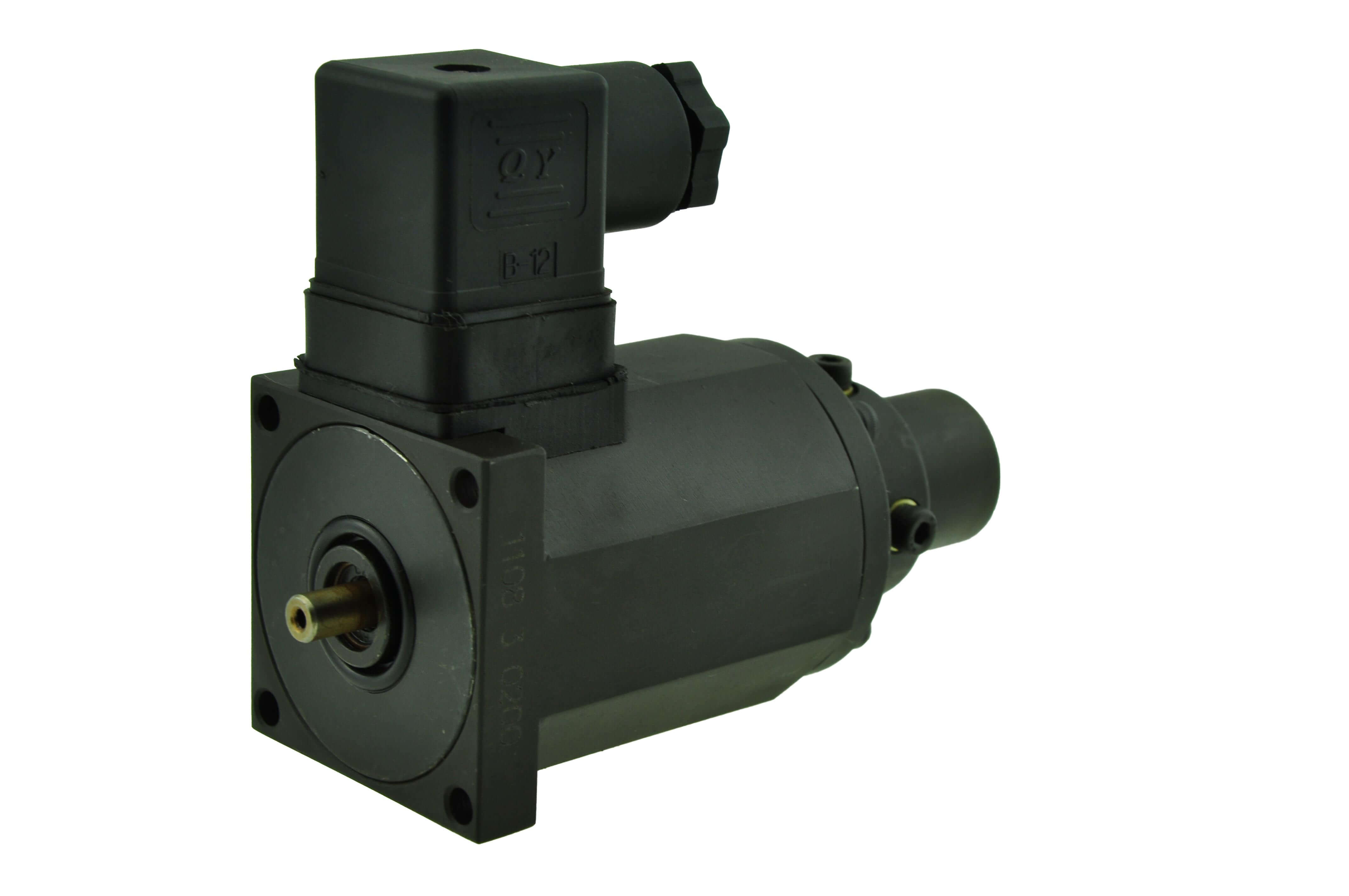

Proportional Solenoid
DOWNLOAD THE SPECIFICATION
| Model No | GP63-S-A |
|---|---|
| Rated Current（A） | 3.3 |
| Rated Force（N） | 165 |
| Full Stroke（mm） | 9 |
| Hysteresis Magnetic Current（%） | ≤3 |
| Insulation Class | F |
| Oil Pressure Duration（MPa） | 21 |
| Resistance（Ω/20℃） | 2 |
| Rated Stroke（mm） | 4 |
| Hysteresis Magnetic Force（%） | ≤4 |
| Repetition Precision（%） | 1 |
| Relative Duty Rating（%） | 100 |
| Protection Grade | IP65 |
S—F Characteristic Curve Test Current : 3.3A
-
This series of solenoids are electric-mechanical transformation, in the range of the rated stroke and rated current, output force is proportional to input signal. Together with proportional control amplifier，it can be realized accuracy control to electric-hydraulic valve spool .Its size is small，linear is balance and repeated precision is high . It is used in machinery construction, as control proportional flow valve and proportional direction valve components.
