On-off Solenoids
On-off Solenoids
DOWNLOAD THE SPECIFICATION
| Model No | NG5 |
|---|---|
| Electrical type | DC |
| Allowed Voltage Fluctuation（%） | ±10 |
| Holding Current（A） | 0.65 |
| Temperature Rise（K） | 96 |
| Full Stroke（mm） | ≥5.8 |
| Insulation Class | H/180℃ |
| Oil Pressure Duration（MPa） | 21 |
| Operating Frequency（t/h） | 12000 |
| Rated Voltage（V） | 24 |
| Power Consumption（W） | 26 |
| Cold Current（A） | 1.06 |
| Rated Force（N） | ≥37 |
| Rated Stroke（mm） | 2.6 |
| Relative Duty Rating（%） | 100 |
| Protection Grade | IP66 |
| Life Time（t） | 10X106 |
S—F Characteristic Curve Test Current : 0.68A
-

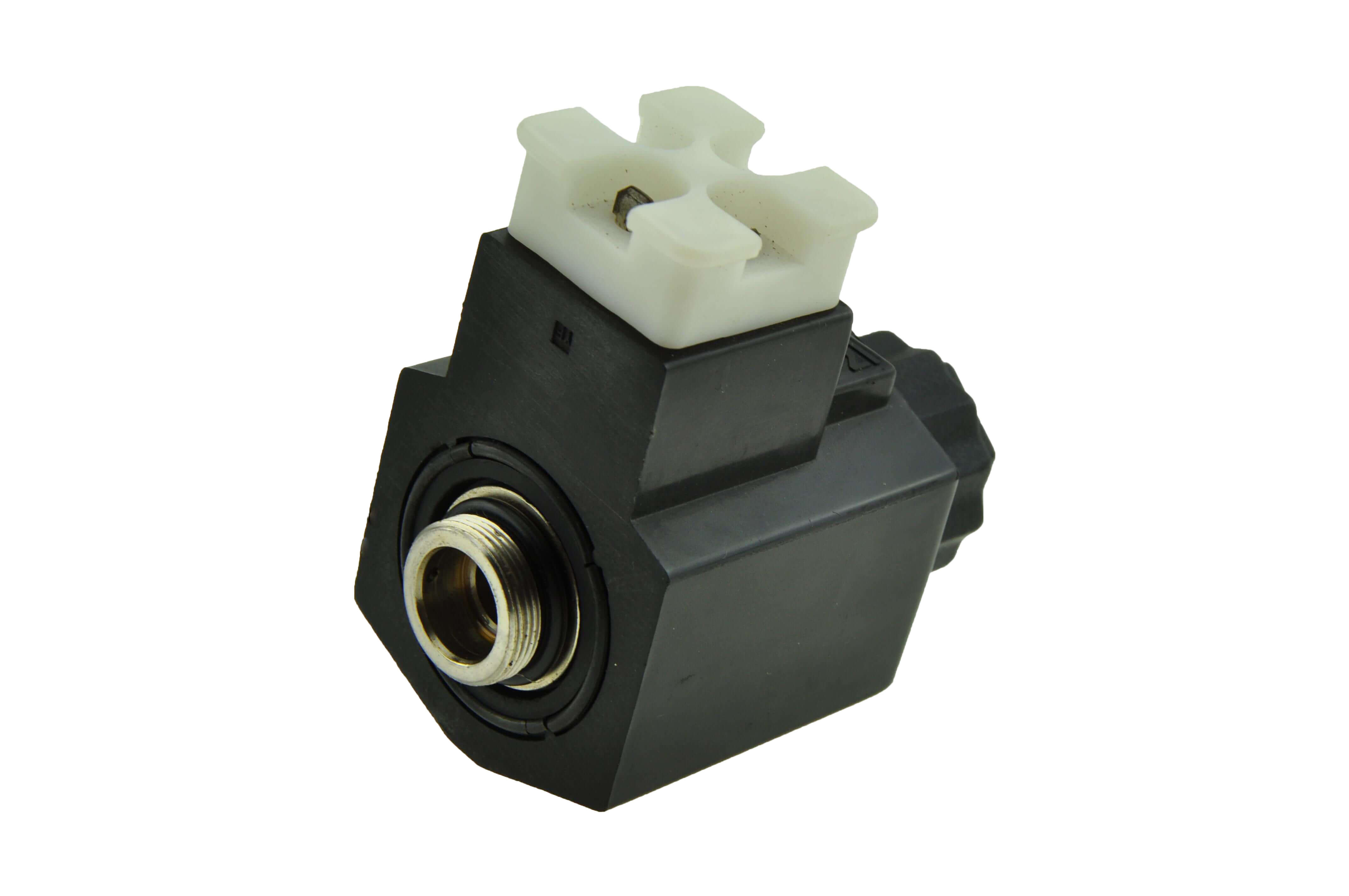

This wet-pin on/off solenoid is applied to single-phase full wave rectifying DC supply power control circuits, which voltage can reach 220V, as a power component of the hydraulic directional valve. It can be used in NG5 screw connected solenoid directional valve.
